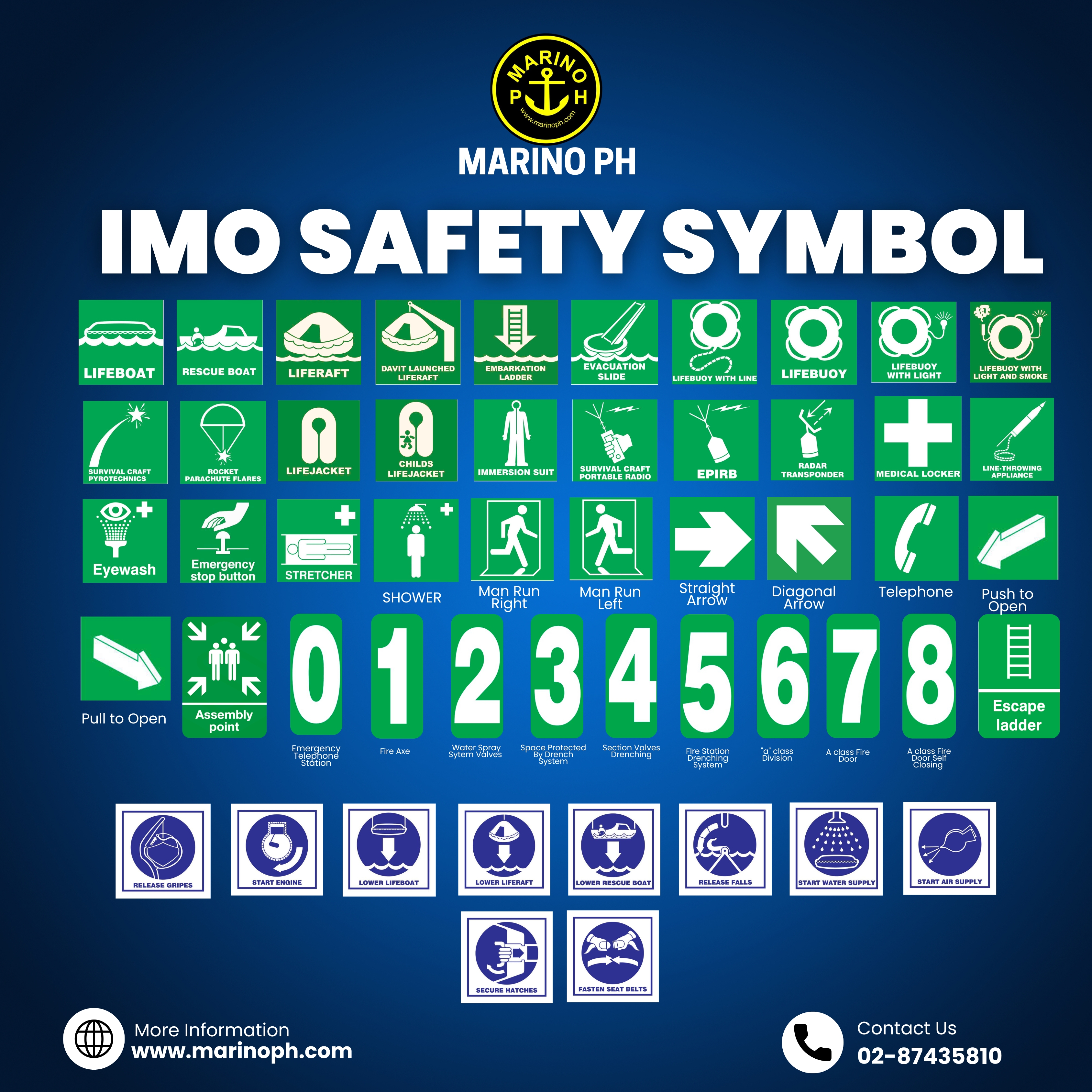

Understanding IMO Safety Symbols

The International Maritime Organization (IMO) safety symbols serve as universal visual guides designed to protect lives at sea. These standardized icons provide quick, clear, and language-independent instructions that help seafarers, passengers, and maritime professionals respond effectively in emergencies. Importance of Symbols on Board Onboard a vessel, safety depends not only on equipment but also on awareness. In critical situations where every second counts, IMO safety symbols minimize confusion by pointing directly to lifesaving appliances, emergency exits, fire control stations, and medical facilities. These symbols ensure that regardless of nationality or spoken language, crew and passengers can understand and act immediately. Categories of Safety Symbols The chart features a wide range of icons: • Lifesaving Equipment: Symbols for lifeboats, liferafts, rescue boats, lifejackets, immersion suits, and survival radios guide seafarers to crucial survival gear. • Emergency Actions: Icons such as eyewash, emergency stop buttons, stretchers, showers, and assembly points highlight essential emergency responses. • Evacuation Guidance: Running man symbols, arrows, escape ladders, and push-to-open signs direct safe movement during evacuation. • Communication & Fire Safety: Telephone stations, fire alarms, and firefighting systems are also clearly indicated

Parts of the Anchor System of a Ship

What is the Anchor System of a Ship? The anchor system is essential equipment that secures a ship in place at sea or in port. It consists of interconnected parts such as the anchor, chain, windlass, and locker, working together to prevent drifting, protect the vessel, and ensure safety during operations, emergencies, or harsh weather conditions. Parts of the Anchor System of a Ship 1. Anchor A heavy steel device that grips the seabed to hold the ship in position. It prevents drifting due to wind, waves, or current, ensuring stability and safety. 2. Chain Cable A strong, durable chain linking the anchor to the ship. Its weight and strength allow effective seabed penetration, withstand high tension, and resist corrosion in harsh marine conditions. 3. Windlass A powerful mechanical device used to heave up or let go the anchor chain. Operated hydraulically, electrically, or manually, it ensures safe, efficient anchoring operations and controlled chain movement. 4. Chain Stopper A securing device that locks the anchor chain when not in use. It relieves stress on the windlass, prevents chain slippage, and ensures safety during sailing or rough weather. 5. Anchor Lashing Strong securing arrangement that holds the anchor firmly in place while the ship is underway. It prevents unwanted movement caused by vibration, waves, or ship motion, protecting vessel structures. 6. Hawse Pipe A cylindrical pipe at the bow through which the anchor chain passes from deck to sea. It aligns and protects the chain, preventing friction damage and entanglement.

JET CHISEL

A jet chisel (also called needle scaler) is a pneumatic tool made up of multiple thin steel rods (“needles”) that rapidly move back and forth when connected to compressed air. The vibration of the needles chips away rust, old paint, scale, and marine growth on metal surfaces. Think of it as “pangbaklas ng kalawang, pero industrial version.” Purpose: • Remove rust, corrosion, and scale from steel surfaces • Prepare metal before painting, welding, or coating • Clean areas where grinders and wire brushes can’t reach (corners, tight spots, edges) • Reduce manual scraping time and physical fatigue How to Use: 1. PPE First • Safety goggles / face shield • Ear protection (maingay ’yan) • Gloves • Mask (dust/rust particles) • Proper coverall 2. Check the Tool • Inspect air hose, connectors, and needles • Ensure air compressor pressure is within recommended range (usually 90 psi ± depending on tool) 3. Connect to Compressed Air • Attach hose firmly • Open the air valve gradually 4. Operate • Hold the tool with both hands • Press the needles gently against the surface — do not push too hard • Let the vibration do the work • Work in steady strokes 5. After Use • Shut off air supply • Clean and oil the needles to prevent rust • Store in dry location

IALA Buoyage System

The IALA Buoyage System was developed by the International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA) to create a standard method of marking channels, hazards, and safe water. Its goal is to provide mariners with a reliable guide to safe navigation, no matter where they sail. 🔹IALA Regions The system is divided into two regions: Region A Covers Europe, Africa, Australia, and most of Asia. Port-hand marks: Red Starboard-hand marks: Green Region B Covers the Americas, Japan, Korea, and the Philippines. Port-hand marks: Green Starboard-hand marks: Red
